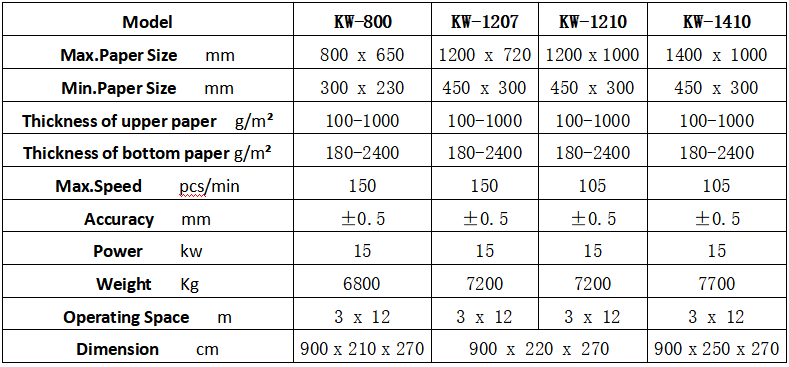

一、Technical Parameter
Remark: Technology configuration and data will vary with improvement of products, the above technical parameter is only for reference.
二、Core Details
Coating System Feeder System
Top sheet dynamic aligning system Airing System
Operating system Drive system
三、Main Performance
1.It adopt advanced four-suction and four-feeding paper feeder system,feeding nozzle can freely adjust the angle to the paper.
2.the whole machine in power transmission by a complete set of timer belts. Free maintenance, low noise and high efficiency.
3.Under control of high precision coating mechanism, the coating volume of gluing roller and glue adjusting roller can reach less than 0.08mm. Automatic glue level control: accurately adjust coating volume required by different paper to ensure even
gluing.
4.Use PLC computer program control system,designed in the accordance with European CE requirement,ensure machine stability,high efficiency and low failure.
5.The whole machine in power transmission by a complete set of timer belts. Free maintenance, low noise and high efficiency.
6.Vibra-Loose Collecting Mechanism, capable of loosening mullet-laid laminated sheets and pushing neatly to ensure smooth collection of paper. high-speed elevator jointly pull-out laminated sheets rapidly and conveniently, which greatly increase the working efficiency.
7.Convenient paper separator: separate the paper from the gluing roller quickly and easy for dismantling, cleaning and calibration of the gluing roller, wipe the glue back to the roller to prevent roller ends at high speed from glue overflowing, and it can also adjust back flow to recycle the glue.
8.Equipped with Germany Becker pumps that provide the stable airing supply for both up and bottom feeder.
9.Motorized calibration of running speed and pressing paper Length allows easy change-over of different paper sizes.
